With the highest GPS sensitivity receiver, your vehicle will be positioned accurately on road. Moreover, it can distinguish which lane you are on. The case in which your vehicle is tracked off the road is excluded (*)
(*) On condition that the road is wide enough and good weather.

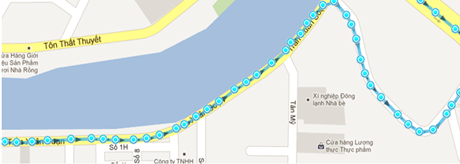

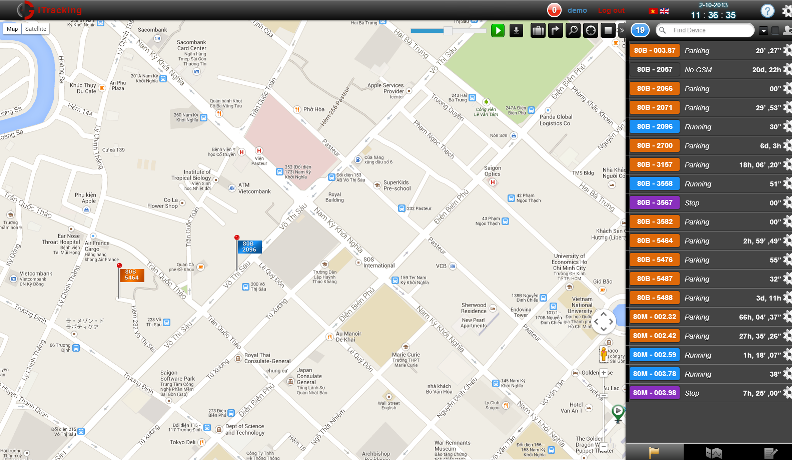

Vehicle’s positions are updated continuously each 2s, ensure consecutive geographic data. Therefore, roadmap is drawn accurately with variance of 2 metres.

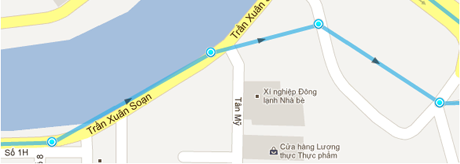

Position data is updated every 10 seconds
Position data is updated every 2 seconds

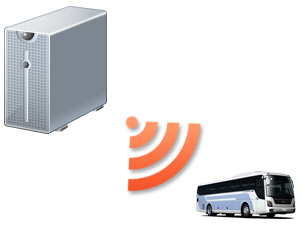

iTtracking is integrated feature that is built for smartphone – OTA. Thanks to this feature, software updates, configuration will be extremely simple and quick. These changes are done automatically with telecommunication wave.
Cost for maintenance is unnecessary when your iTracking always gets latest features.
With electrical system protection and power supply regulator integrated inside, iTracking ensures that your vehicle’s power system is working under the best condition.
iTracking eliminates the harm for your vehicle’s electrical system and lengthens battery life.
Voltage
7-40V
Currents
10 mA (idle) – 200 mA (working)
Temperature
30°C – 80°C (working)
40°C – 85°C (storage)
Humidity
5% - 98%
Size
100 x 100 x 30 mm
Modem GSM
Sim 900 of Simcom
Frequency
GSM/GPRS 900/1800/1900 MHz
Network
GPRS
Data transfer protocol
TCP/IP
GPS Protocol Standard
NMEA – 0183
Accuracy
Distance: 5m
velocity: 0.1m/s
Time: 1ms synchronized with GPS satellite
Sensitivity waves
-165 dBm
GPS Frequency
L1, 1575.42 MHz
Start time
Hot start:<1 second
Warm start:< 33 seconds
Cold start:< 35 seconds
CPU
ST 32 bit ARM-CORTEX M3
Ram
64KB
Flash Memory
368 KB
External storage
Max 4GB
I/O
6 pulse input
Advanced I/O
OBD; OBD2
User interface port RS232
9600 bps

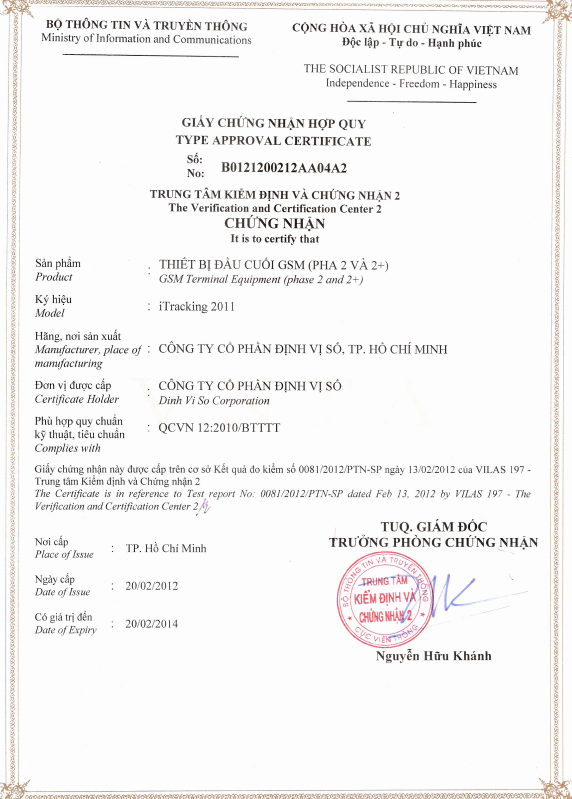

Certification no.B0121200212AA04A2 of Ministry of Information and Communications.

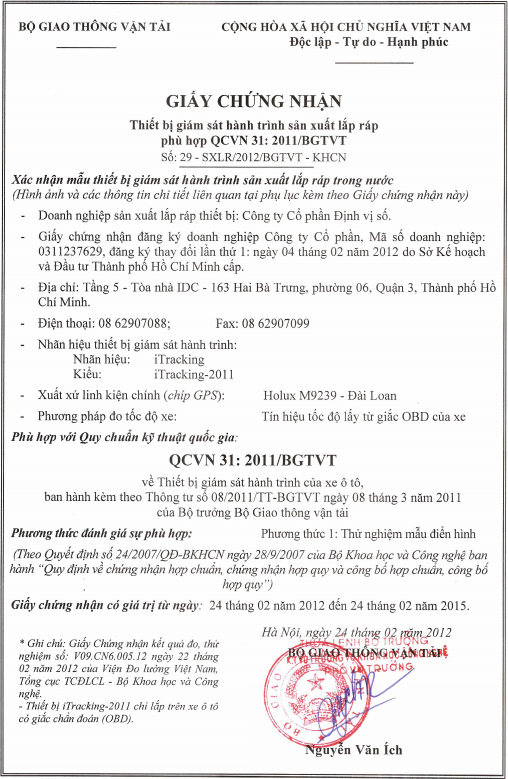

Certification no.9 SXLR/2012/BGTVT - KHCN of Ministry of Transport.
